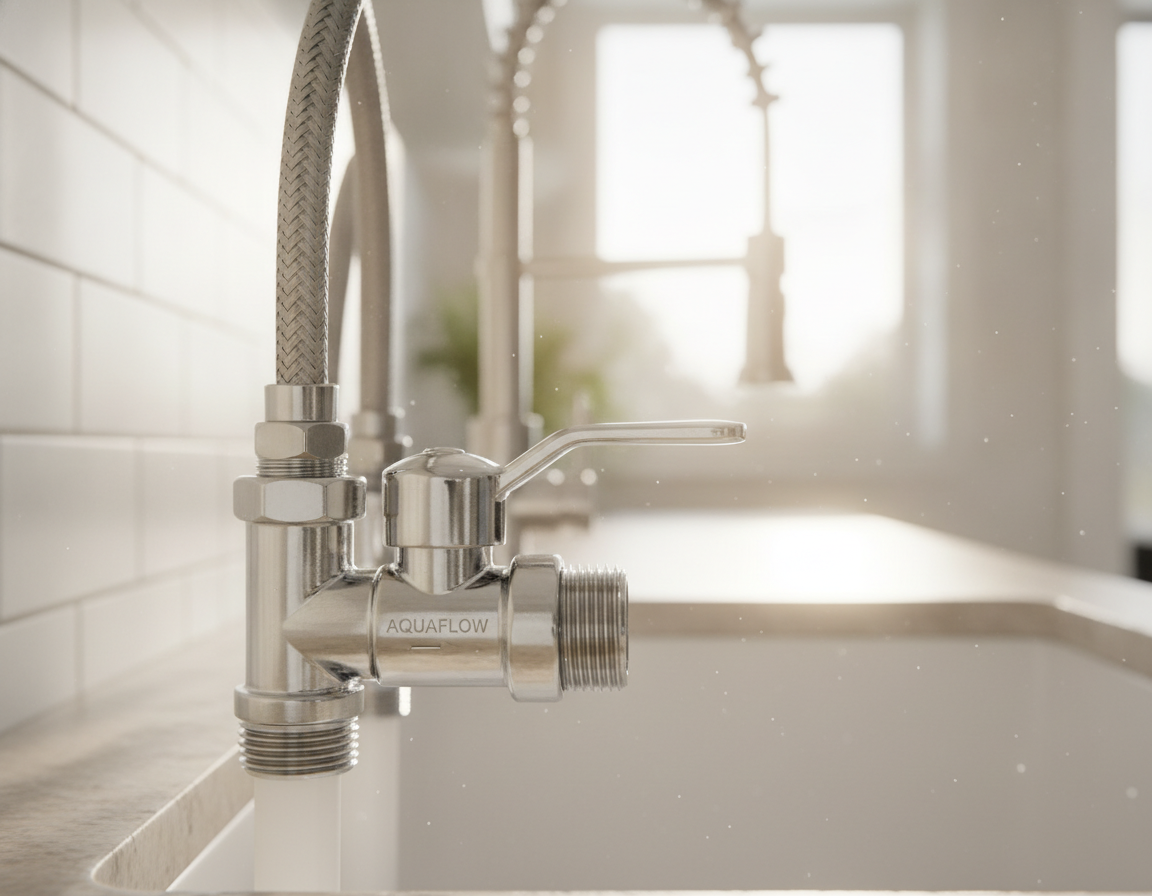

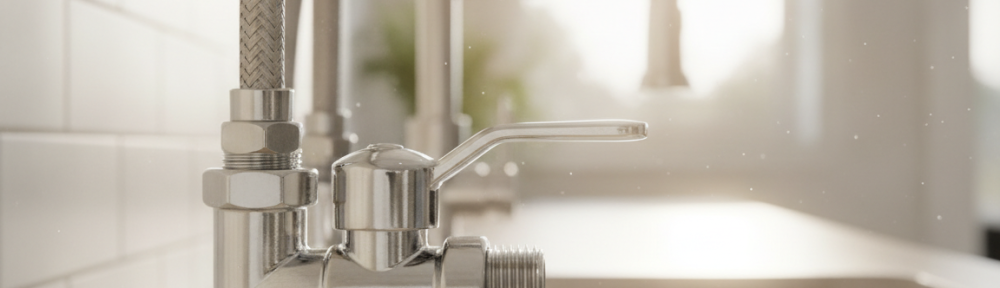

An angle stop is a small, L-shaped shutoff valve where a water line feeds a fixture. These valves are commonly found beneath sinks, behind toilets, and near appliance hookups. A functioning Plumbing Angle Stop lets you isolate one fixture without shutting off the main supply. That means maintenance jobs can be completed with less disruption.

Angle Stop Valve
Most home angle stops are 3–6 inches tall and turn water 90 degrees toward the fixture. Today’s installations often use quarter-turn, ball-style Angle Stop Valve models. These are quicker to operate and tend to last longer. When an angle stop becomes hard to turn, replacement can prevent water-damage risk and make future service easier.

Important Points

• Plumbing Angle Stops let you shut off water to one fixture without touching the house main.
• Angle Stops Plumbing are commonly installed under sinks and behind toilets for easy access.
• An Angle Stop Valve typically measures 3–6 inches and turns water 90 degrees toward the fixture.
• Quarter-turn models are commonly preferred because they offer dependable performance.
• Any valve that leaks should be replaced before it causes larger water problems.

Understanding An Angle Stop And Why It Matters

The angle stop is a compact shutoff valve installed where a water line meets a fixture. It controls flow to one fixture, allowing repairs or replacements without shutting off the main supply. Homeowners, plumbers, and inspectors depend on these valves to keep maintenance localized.

Angle Stop Definition Explained

An angle stop is a 90-degree valve placed at the fixture supply. It comes in different designs, including Angle Stop Valves with multi-turn stems or quarter-turn ball internals. A Plumbing Angle Stop is designed to fit neatly in tight spots such as under-sink cabinets and behind toilets.

Where Angle Stops Are Installed In A Typical Home

Plumbing Angle Stops are commonly found under kitchen and bathroom sinks. They are usually positioned near the rear of the cabinet where the water line comes through. Toilet angle stops are normally mounted on the wall behind or beside the toilet tank. You will also see angle stops at appliance connections such as dishwashers, ice makers, washing machines, and near some water heaters for cold-water shutoff.

Why Angle Stops Help Homeowners

A major advantage of an Angle Valve For Sink is fixture isolation. With a working Plumbing Angle Stop, you can shut off a single sink, toilet, or appliance line while fixing a leak or replacing a fixture. This helps prevent minor leaks from becoming major water-damage events and keeps household disruption lower.

Another advantage is convenience. Angle Stops Plumbing are space-saving, quick to access, and reduce repair downtime. Periodic exercising of the valve keeps it operable. Replacing old multi-turn stops with quarter-turn Angle Stop Valve models can make emergency shutoff faster.

Angle Stop Versus Angle Seat Valve

Household angle stops serve low-pressure potable water lines. They are designed for sinks, toilets, and common appliances. An industrial Angle Seat Valve is a different type of valve. It is built for higher-pressure, higher-temperature, or corrosive applications in steam, chemical, and HVAC systems. Angle seat valves use pistons and durable metal seats for tough service, while an Angle Stop is a simpler fixture-level shutoff for residential plumbing.

Angle Stop Types And How To Choose One

Selecting the correct angle stop involves comparing materials, operating style, connection type, and extra features. This guide compares common options to help homeowners and plumbers choose a durable, code-compliant fixture shutoff.

Angle Stop Materials

Brass is widely used as the standard material for Angle Stops. It resists corrosion and can last 10–20 years, making it ideal for Quarter-Turn Angle Stops. Stainless steel bodies are best for humid basements, coastal areas, and outdoor hose bibs to prevent rust. Plastic-bodied stops are cheaper, but they are typically less durable and can degrade in hot-water service. For potable water lines in the United States, select a Lead-Free Angle Stop that meets applicable federal and state requirements.

Operation Styles

Quarter-turn valves typically use a ball or disc mechanism and operate with one 90-degree turn. They offer fast shutoff and better resistance to mineral buildup, which makes them useful for frequent operation and emergencies. Multi-turn valves rely on a rising stem and need several turns to open or close fully. They provide finer flow control but are more likely to leak or stick in older homes.

Common Connection Styles

Compression Angle Stop fittings use a nut and ferrule, making them common for copper and CPVC stub-outs. They are popular in remodels because they can be installed without soldering or open flame. Sweat Angle Stop connections are soldered to create a slim, permanent joint where torch work is safe and allowed. FIP-threaded valves screw onto male adapters and require PTFE tape or pipe sealant. Push-Fit Angle Stop products, including SharkBite-compatible models, slip onto copper, CPVC, or PEX for tool-free installs. They are useful for DIY work or cramped areas, while Compression Angle Stop options remain common where future rework is expected.

Useful Special Features

Some Angle Stop Valve designs include a built-in Water Hammer Arrestor Angle Stop. These use a piston or air chamber to absorb shock from quick-closing fixtures and reduce noisy banging. In humid or coastal locations, a Coastal Angle Stop with corrosion-resistant finishes, stainless internals, and anti-seize stems can improve service life. A Lead-Free Angle Stop marking on the body helps confirm the valve is intended for potable-water use. Choose a valve that matches the pipe material, connection type, and service conditions to reduce premature failure.

Plumbing Angle Stops

Plumbing angle stops control water flow to fixtures with a right-angle design. Choosing the right size and style affects performance, ease of service, and compliance. The sections below explain valve markings, typical home locations, lead-free requirements, and modern installation trends.

Common Valve Sizes And How To Read Markings

In most homes, the inlet side is commonly 1/2 inch nominal, while the outlet to the fixture is often 3/8 inch compression. Valve markings often appear as 1/2 x 3/8, 1/2” MIP x 3/8” OD, or similar size combinations. This identifies the inlet and outlet sizes. Some valves are marked 3/8 COMP to indicate a compression outlet. Make sure the inlet matches your supply pipe, whether it is 1/2 FIP, 1/2 MIP, or 1/2 sweat.

Typical Placement In The Home

Angle stops are usually installed under kitchen sinks, beneath bathroom vanities, and behind toilets. They are also used for appliances such as water heaters, dishwashers, ice makers, and washing machines. Under-sink stops usually sit at the back of cabinets, while toilet stops remain visible behind the tank.

Potable Water Code And Safety Notes

In the U.S., valves for drinking-water lines must meet lead-free standards for wetted surfaces. Look for a Lead-Free Angle Stop with compliant markings and documentation. Contractors must follow local codes and provide test certifications and warranties to support compliance.

Modern Trends And Recommended Standards

Modern Angle Stops often use quarter-turn ball designs. The Quarter-Turn Angle Stop gives quick emergency shutoff and long life with brass construction. Experts often recommend a brass 1/2 x 3/8 angle stop for sinks and toilets for easier stocking and maintenance. New installations increasingly include models with arrestors, lead-free markings, and other potable-water protection features.

Practical Checklist For Selection

• Confirm Valve Markings for inlet type and outlet size before purchase.
• Make sure the Angle Valve For Sink or toilet stop matches the supply hose, fixture threads, and tank connection.
• Specify a Lead-Free Angle Stop when the line serves potable water.
• For many homes, standardizing on Quarter-Turn Angle Stop 1/2 x 3/8 valves can simplify maintenance and improve reliability.

How To Install And Replace Angle Stops Safely

When tackling a plumbing angle stop, it is important to know when to shut the main water supply. The main usually needs to be closed only when the existing stop is damaged. For most replacements, you can isolate the line using the valve under the sink. Always open a downstream faucet to relieve pressure and keep towels and a bucket ready.

Before the repair begins, collect the necessary tools, fittings, and supplies. You will need an adjustable wrench, backup wrench, tube cutter, and deburring tool. Emery cloth, PTFE tape, a marker, and a flashlight are also helpful for clean preparation and inspection. For push-fit work, use the manufacturer’s push-fit angle stop and a PEX stiffener where needed; for compression jobs, keep spare ferrules and nuts available. Penetrating oil and a heat shield help with stubborn fittings and sweat connections.

Tool Checklist:

• Adjustable wrench and backup wrench
• Tube cutter and deburring tool
• PTFE tape plus marking pen
• Push-fit angle stop and PEX stiffener
• Extra ferrules, nuts, oil, towels, and cleanup supplies

Follow specific steps for each connection type. For compression, slide the nut and ferrule onto the pipe, then seat the valve against the pipe shoulder. Hand-tighten the nut and finish with a 1/4–1/2 turn using a wrench. When tightening the outlet nut, use a backup wrench to prevent twisting the stub-out.

For push-fit installation, cut the pipe square and deburr it. Mark the insertion depth and push the valve straight on to the depth mark. Tug lightly to confirm the fitting locked. Push-fit angle stop fittings can work with copper, CPVC, and PEX, but PEX may require a stiffener depending on the product.

Sweat angle stop joints require careful handling. Remove or protect nearby seals and internals, clean and flux the pipe and valve cup, heat the joint evenly, and solder. After cooling, wipe the joint to remove residue. A heat shield or removal of heat-sensitive parts helps prevent damage during soldering.

For threaded connections such as a FIP angle stop, wrap male threads with PTFE tape using three to four wraps and start the valve by hand to avoid cross-threading. Tighten until aligned and sealed, then connect the supply line and test slowly.

After installation, turn the water back on slowly while watching every joint. Open the angle stop and fixture gradually. Use a dry towel or tissue to reveal small weeps around fittings. Exercise the valve and recheck after pressure stabilizes to catch slow leaks.

Several common mistakes can cause leaks or early valve failure. Over-tightened compression nuts may deform ferrules and create leaks. Do not reuse damaged ferrules; when necessary, cut back the pipe and install a new ferrule. Do not solder near heat-sensitive seals unless they are protected or removed. Do not twist while inserting push-fit fittings, and always follow manufacturer depth marks.

Typical problems include frozen or leaking stops that require main shutoff, incorrectly applied PTFE tape on threaded joints, and outlet nuts tightened without a backup wrench. Keep spare parts nearby and follow torque guidance for each valve type to reduce callbacks.

Common Angle Stop Issues And Fast Fixes

Homeowners often encounter small leaks and frozen handles with angle stops. A quick inspection can show whether the valve needs a minor repair or complete replacement for dependable service.

Leaks Around The Handle

Stem seepage in older multi-turn valves often comes from a loose packing nut. Tightening the nut about 1/8 turn with an adjustable wrench can often solve the issue. If the leak continues, the internal washer or O-ring may be worn and replacement may be required.

Stuck Valves

Stuck angle stops often result from Mineral Buildup or rust. Applying a penetrating oil such as WD-40 and allowing it to sit for about ten minutes can sometimes loosen the valve. A gentle back-and-forth motion may help break the handle free. If the valve stays frozen or the handle feels brittle, replacement is safer than forcing it and risking a flood.

Leaks At Compression Joints

A continuing compression-joint leak often points to a crooked ferrule, damaged pipe end, or poor seating. To fix it, loosen the nut, reseat the ferrule, and clean the pipe with emery cloth. If the ferrule is worn, cut back the pipe, install a new ferrule, and tighten carefully to prevent more leaks.

When To Upgrade

If a home has repeated leaks, frozen handles, visible corrosion, or valves older than about ten years, modern angle stops are worth considering. A Quarter-Turn Upgrade to a ball-style valve can improve shutoff speed, resist Mineral Buildup, and make emergency service more dependable.

Simple Troubleshooting Checklist

• Tighten the packing nut slightly for stem drips.
• For stuck valves, apply Penetrating Oil and use gentle back-and-forth motion.
• Reseat the ferrule or cut back the pipe for compression leaks.
• Upgrade to quarter-turn stops when valves freeze or leak repeatedly.

Regularly exercising angle stops and checking for corrosion helps identify issues early. Promptly addressing leaks, stuck valves, or weeping joints prevents larger repairs and maintains Angle Stop Reliability.

Final Thoughts

This Plumbing Angle Stops Guide shows why small fixture shutoff valves are so important. They allow homeowners to isolate specific fixtures without affecting the entire system. Choosing the right material, operation style, and connection type makes repairs easier. It can also lower the chance of water damage during fixture upgrades and maintenance.

For strong everyday performance, many professionals prefer lead-free, quarter-turn brass 1/2 x 3/8 stops. Integrated arrestors may be added where quick-closing fixtures or water hammer create noise and stress. Homeowners should test valves regularly and replace faulty Plumbing Angle Stops. Depending on valve type and job difficulty, parts may range from $6 to $60, while professional installation may cost $75 to $200.

If installation is uncertain, consulting a licensed plumber is wise. A qualified plumber can check code requirements, complete the work properly, and often provide warranty-backed service. That approach helps protect fixtures, reduce risk, and make future maintenance easier. It also supports current Angle Stops Plumbing best practices for today’s residential systems.
